Remote start and keyless entry system
Model: PRO9556E
KEY FEATURES

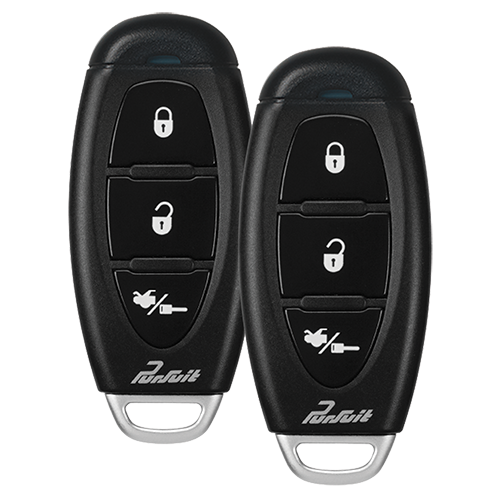

(2) 3-button one-way remote controls
Programmed transmitter notification
Glass mount antenna with built-in LED light and valet switch
(+) and (-) keyless entry outputs
Trunk release output
On board start relay
On board accessory relay
On board ignition 1 & 2 relay
If You Are Interested in this Product, Inquire At Your Local Authorized Retailer.
Find Your Replacement Transmitter
PRODUCT OVERVIEW
The PRO9556E is a remote start and keyless entry system that comes with (2) three-button 1-way remote controls, programmed transmitter notification, glass mount antenna with built-in LED light and valet switch, trunk release, selectable door lock pulse, c
Features (continued)
- Ignition 2 relay selectable on or off during cranking
- On board parking light relay
- Ignition 3 / shock by-pass / GM VAT output (relay required)
- Tach signal learning curcuit
- 2 (+) and 2 (-) safety shutdown circuits
- Alarm by-pass output
- Accessory outputs (pulse before & after start, during crank & after shut down)
- Selectable steady or flashing parking lights for run indication
- Selectable run times
- Selectable door lock pulse timing 1 second / 3.5 seconds / 1 sec. L / dbl. U / L
- Car finder mode
- Hybrid vehicle compatible for remote start
- RF programmable
- DBI port - plug in FlashLogic by-pass capable
- Limited lifetime warranty - includes nationwide travelers warranty
Specifications
| Range (Distance) | 1,500' | |
| Programmed Transmitter Notification | Yes | |
| Two-Step Unlock | N/A | |
| Parking Light Flasher | Yes | |
| Starter Interrupt Relay | N/A | |
| Starter Interrupt Output | N/A | |
| Plug In Dual Stage Shock Sensor | N/A | |
| Auto Lock/Unlock | N/A | |
| Passive Locks | N/A | |
| Remote Panic | N/A | |
| Horn Output | N/A | |
| Active or Passive Arming Selection | N/A | |
| Push Button LED / Valet / Programming Switch | N/A | |
| Glass Mount Antenna LED/Valet Switch | Yes | |
| Keyless Entry | Yes | |
| Remote Trunk Release | Yes | |
| Dual Vehicle Operation | Yes | |
| Chirp Delete From Transmitter | N/A | |
| Dome Light Illumination Output | N/A | |
| Selectable Run Time 5 - 10 - 15 - 20 - 45 - 60 Minutes | Yes | |
| Can Be Used With Gas or Diesel Engines | Yes | |
| Diesel Wait To Start Input | Yes | |
| Automatic Timed Start | N/A | |
| Ground Output While Running | Yes | |
| 4 Auxiliary Outputs Pulses, Before Start, After Start, During Crank, After Shut Down. | Yes | |
| Safe Start Double Push To Start System | Yes | |
| Hybrid Compatible | Yes | |
| On-Board Relays | 5 | |
| Additional Aux Channel Outputs | N/A | |
| Operates Memory Seats | N/A | |
| Turbo Timer | N/A | |
| Headlight Activation | N/A | |
| Selectable Remote Start Shock Sensor By-Pass | N/A | |
| Door Unlock Capable Under Remote Start Control | N/A | |
| Web Based Programmable | Yes | |
| DBI Port - Flashlogic Ready | Yes | |
| Telematics Port - Car Connection PRO Ready | N/A | |
| Warranty - Includes Nationwide Travelers | Lifetime | |
| Transmitters | 2 - 3 Button |
